Engineering Spotlight: What Are Winglets and Why Do They Matter?

In the pursuit of greater fuel efficiency, lower emissions, and improved aircraft performance, one of the most recognizable innovations in modern aircraft design can be found at the tip of the wing: the winglet.

Seen on many commercial aircraft worldwide, winglets are aerodynamic devices designed to reduce induced drag caused by wingtip vortices—the swirling air generated as high-pressure air beneath the wing meets low-pressure air above it. By minimizing these vortices, winglets improve aerodynamic efficiency and enable aircraft to fly farther while consuming less fuel.

How Winglets Improve Aircraft Performance

As an aircraft generates lift, wingtip vortices create additional drag, forcing engines to work harder and consume more fuel. Winglets help mitigate this effect by improving airflow around the wingtip and reducing the strength of these vortices.

The benefits include:

• Reduced induced drag
• Improved fuel efficiency (typically between 4% and 6.5%, depending on aircraft type and mission profile)
• Extended aircraft range
• Improved climb and takeoff performance
• Lower CO₂ emissions and environmental impact
• Reduced operating costs for airlines

According to NASA flight testing, winglets can reduce fuel consumption by up to 6.5% on certain aircraft configurations, while airline operators have reported significant fuel savings across long-haul and short-haul operations.

Common Types of Winglets

Blended Winglets

Featuring a smooth, curved transition between the wing and winglet, blended winglets are commonly found on aircraft such as the Boeing 737NG and Boeing 757. Their design reduces drag while improving overall aerodynamic performance.

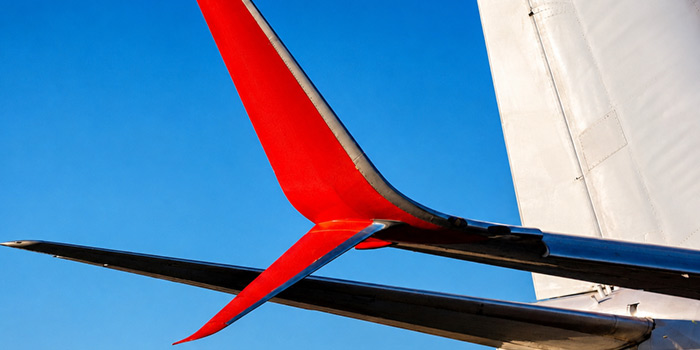

Split Scimitar Winglets

An evolution of the blended winglet, split scimitar winglets incorporate an additional downward-facing tip. Widely used on Boeing 737-800 fleets, they deliver further fuel savings and operational efficiencies.

Wingtip Fences

Introduced by Airbus, wingtip fences extend both above and below the wing. Their purpose is to limit airflow mixing between the upper and lower wing surfaces, reducing vortex formation and improving efficiency.

Sharklets

Airbus Sharklets are advanced wingtip devices fitted to the A320 family, including the A320neo. They provide enhanced aerodynamic performance and contribute to lower fuel burn and emissions.

Raked Wingtips

Unlike vertical winglets, raked wingtips extend the wing itself with a swept-back design. Found on aircraft such as the Boeing 787 Dreamliner and Boeing 777-300ER, they effectively increase wingspan and reduce induced drag.

Canted Winglets

Popularized on aircraft such as the Boeing 747-400, canted winglets are angled extensions that improve aerodynamic efficiency while maintaining structural effectiveness.

Winglets and Sustainable Aviation

As airlines continue to focus on operational efficiency and sustainability, winglets remain one of the most cost-effective aerodynamic enhancements available.

By reducing fuel consumption, airlines can lower operating costs while simultaneously reducing carbon emissions. For many operators, winglet retrofits have delivered measurable environmental and financial benefits without requiring major changes to fleet operations.



How AviaPro Supports Airlines and Aircraft Operators

While winglets are an engineering solution, realizing their full commercial value requires careful technical, operational, and financial evaluation.

AviaPro supports airlines, lessors, investors, and aviation stakeholders through:

• Fleet performance and efficiency assessments
• Aircraft modification and retrofit business case analysis
• Fuel burn and emissions reduction evaluations
• Technical due diligence for fleet acquisitions and transitions
• Aircraft leasing and asset management advisory
• ROI and lifecycle cost analysis for aircraft upgrades
• Aviation strategy and operational improvement consulting

Whether evaluating winglet retrofit opportunities, assessing next-generation aircraft investments, or developing fleet optimization strategies, AviaPro helps organizations align technical decisions with operational performance and long-term commercial value.

As the aviation industry continues its journey toward greater efficiency and sustainability, technologies such as winglets demonstrate how small engineering innovations can deliver significant operational and environmental benefits across the lifecycle of an aircraft.



Sources

• 1. NASA Glenn Research Center – Winglets Overview
• 2. NASA Glenn Research Center – Induced Drag and Wingtip Vortices
• 3. Aviation Partners Boeing – Blended Winglets Overview
• 4. Aviation Partners Boeing – Fuel Savings from Winglets
• 5. Aviation Partners Boeing – Environmental Benefits of Winglets
• 6. Boeing – 737 MAX Advanced Technology Winglets
